# 6.4.3.2. Managing the content of the hierarchy

{% hint style="info" %}
Registry Administrators can add and/or remove Geo-Object Types or groups to the hierarchies for the organization they are a part of.
{% endhint %}

{% hint style="info" %}
Geo-Object Types or groups from organizations you are not a member of can also be added to a hierarchy from your organization.
{% endhint %}

To add a Geo-Object Type (group) to a hierarchy:

1. Go to the *Geo-Objects and Hierarchies* module either by clicking the Geo-Objects and Hierarchies module icon in the main menu page or by clicking the hamburger menu (![](https://lh3.googleusercontent.com/iuPmL_Z1smFoRNK34qpVh9--96pLjj8A-P4QdCAlpcvxkSIfD3bihusMrW6MlenmddHse4DMtkIfNaLzts2tH95aM8vei5RBC6-FuLkbYRi4j4V9LiSgid0KfK2wPUgPo-Oim_IF7FqvJW8Ck-ESi0sPLJ2Hi6rets24LbXMhLUD7h3zOJePImZz)) in the upper right corner and selecting *Geo-Objects and Hierarchies*.\\

   <figure><img src="https://3732932512-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F9giVyCrmTxAs33YrSRbJ%2Fuploads%2FqwrgcaFGBMvii1QtQcP4%2Fimage.png?alt=media&#x26;token=89b3f6cc-2bdc-4820-9b3f-bb40522bbaeb" alt=""><figcaption></figcaption></figure>
2. If needed, expand the *Hierarchies* column on the sidebar by clicking the arrow at the end.\\

   <figure><img src="https://3732932512-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F9giVyCrmTxAs33YrSRbJ%2Fuploads%2FlCvbctKVLzbVU3UvQNRo%2Fimage.png?alt=media&#x26;token=e78a2e6e-5c77-405c-8fb8-c9972046d910" alt=""><figcaption></figcaption></figure>
3. Scroll down the *Hierarchies* column to the organization you are a part of. Click the name of the hierarchy you want to add a Geo-Object Type (group) to to select it (the box of the selected hierarchy will change to a different color). This will display the area to add Geo-Object Type (group) as part of the hierarchy to the right of the *Geo-Object Types* and *Hierarchies* columns (represented by the rectangle with dotted lines).\\

   <figure><img src="https://lh4.googleusercontent.com/Jxsmc6aONAU3-udfty1_9hh5xIWoCrFs_r2r3AI0MbOUwuPqM1miP1l4bNzoz5Cj2s60xOfH536X1n72faAN2me0v-cPBm4ShRMUEcBFbIMnl-DNzft-e-4vemFWOfhBQPLftP9CwyamJrINk68MC-pjM6G163cV9u-jrqnareDhmOOJDEMeJJQV" alt=""><figcaption></figcaption></figure>
4. Find one of the Geo-Object Types (groups) that you want to add to the hierarchy in the *Geo-Object Types* column. If needed, expand the *Geo-Object Types* column in the sidebar by clicking the arrow at the end.\\

   <figure><img src="https://3732932512-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F9giVyCrmTxAs33YrSRbJ%2Fuploads%2FgcLuhuv7nxeUtrprBhTC%2Fimage.png?alt=media&#x26;token=52b485e4-ec3b-4b37-a3d4-f6d9f8a437fd" alt=""><figcaption></figcaption></figure>

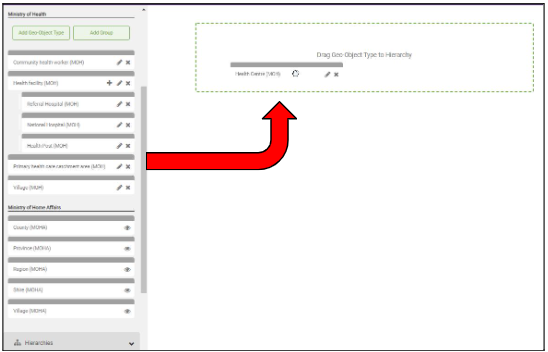

5. Click and hold on the name of the Geo-Object Type (group) and drag it to the area to add it to the selected hierarchy.

   <figure><img src="https://3732932512-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F9giVyCrmTxAs33YrSRbJ%2Fuploads%2Fgit-blob-a8a8ae3963a3cbbacd1b950b7030b15dd9a67c80%2Fimage%20(3).png?alt=media" alt=""><figcaption></figcaption></figure>

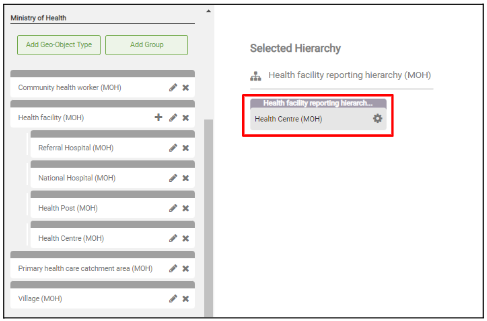

6. The display area will now show the Geo-Object Type (group) you have added to the hierarchy.

   <figure><img src="https://3732932512-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F9giVyCrmTxAs33YrSRbJ%2Fuploads%2Fgit-blob-5a2af9bd45fe6b0486a2916654ba4332c94e6d11%2Fimage%20(4).png?alt=media" alt=""><figcaption></figcaption></figure>
7. To add another Geo-Object Type (group), click and hold on the name of the Geo-Object Type (group) and drag it on top of the Geo-Object Type that is already part of the hierarchy.

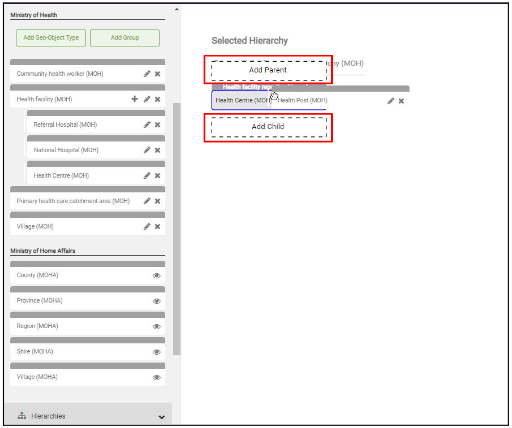

8. You will then have the option to choose whether to add this new Geo-Object Type (group) as a parent (above) or child (below) of the Geo-Object Type already in the hierarchy. Drag the Geo-Object Type (group) to the chosen place in the hierarchy (parent or child) until the selected place turns blue and drop it there.

   <figure><img src="https://3732932512-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F9giVyCrmTxAs33YrSRbJ%2Fuploads%2Fgit-blob-cfa19a63d2d8591d92eebea24f6a32c9f47da7bc%2Fimage%20(1).png?alt=media" alt=""><figcaption></figcaption></figure>
9. Once added, you will see the new Geo-Object Type (group) connected to the other Geo-Object Type (group) in the hierarchy (either above or below the other Geo-Object Type (group), depending on the relationship you chose). In the example below, the *Health Post* Geo-Object Type was added as a child of the *Health Center* Geo-Object Type in the *Health Facility Reporting Hierarchy*.\\

   <figure><img src="https://lh4.googleusercontent.com/ceFCnlsbA8dfuQU6jM7oFmL8HdmWf0yLYNb8PP4BZVT7r73NOU8rOC8cDQF9E-QsHfVe58DRIr4mOy4gMrpTpM7GJOMJXB6ShPGFyBdppPCe3erRXIDOuWGiAUK2rhpaNcggLyy6J_AeU0gggnZrbw1F47kmRh4dsUcGunTaCExhypDUoMPY_iZJ" alt=""><figcaption></figcaption></figure>
10. Repeat steps 4 to 7 to add other Geo-Object Types (groups) to complete the hierarchy.

{% hint style="danger" %}
Important notes:

1. Two different Geo-Object Type groups cannot be added together in a linear hierarchy.
2. A Geo-Object Type group can be only a child and never a parent to a Geo-Object Type in a hierarchy.
3. A Geo-Object Type can have more than one child in a hierarchy.
   {% endhint %}

To remove Geo-Object Types (groups) from a hierarchy:

1. Go to the *Geo-Objects and Hierarchies* module either by clicking the Geo-Objects and Hierarchies module icon in the main menu page or by clicking the hamburger menu (![](https://lh3.googleusercontent.com/iuPmL_Z1smFoRNK34qpVh9--96pLjj8A-P4QdCAlpcvxkSIfD3bihusMrW6MlenmddHse4DMtkIfNaLzts2tH95aM8vei5RBC6-FuLkbYRi4j4V9LiSgid0KfK2wPUgPo-Oim_IF7FqvJW8Ck-ESi0sPLJ2Hi6rets24LbXMhLUD7h3zOJePImZz)) in the upper right corner and selecting *Geo-Objects and Hierarchies*.\\

   <figure><img src="https://3732932512-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F9giVyCrmTxAs33YrSRbJ%2Fuploads%2FqwrgcaFGBMvii1QtQcP4%2Fimage.png?alt=media&#x26;token=89b3f6cc-2bdc-4820-9b3f-bb40522bbaeb" alt=""><figcaption></figcaption></figure>
2. If needed, expand the *Hierarchies* column in the sidebar by clicking the arrow at the end.\\

   <figure><img src="https://3732932512-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F9giVyCrmTxAs33YrSRbJ%2Fuploads%2FlCvbctKVLzbVU3UvQNRo%2Fimage.png?alt=media&#x26;token=e78a2e6e-5c77-405c-8fb8-c9972046d910" alt=""><figcaption></figcaption></figure>
3. Scroll down the *Hierarchies* column to the organization you are a part of. Click the name of the hierarchy you want to remove a Geo-Object Type (group) from to select it (the box of the selected hierarchy will change to a different color). This will display the Geo-Object Types (groups) that are part of the selected hierarchy.\\

   <figure><img src="https://lh5.googleusercontent.com/Rc_8zZzyeXt0sxt9HwDY3qxKN4wlgxqiM3wyHncnlke6nmpTluBYVwMcfNet3xx2bK5XHTzN1QHSJLpTaYcYl0RLKIs9ot800MWISrCv0OXe35kjxRlE6BSzHdrQ0W0cpr3tpkMI4oFIaPD98-lR4NCWJsQRVeSNEd382FoTzSrfC1digf4gkstR" alt=""><figcaption></figcaption></figure>
4. Find the Geo-Object Type (group) you want to remove from the hierarchy and click the gear icon (![](https://lh3.googleusercontent.com/opAub8U1fJ2Mgcg2SS2TxxhMWudBPL956h5H72-uuXqppmmqOrQFSFKBVKRveMwmrlyCp4QaRThvxE8aqFkbea-9abSRrJ_u6-KEGOe6OrOFGI7d6iVdZeVEoOOZqBu63749utuD4eX_u6k2wZzlJ3aBJpsnET4iZht1Q2eog6e6IyPQtbCxWOuW)) at the end of its name.\\

   <figure><img src="https://lh5.googleusercontent.com/BvPyScVY2xNtLuBHeV783KrTT9zTcJ9g4bOlzn_zfPSjybzkpTWs5-iMKvm_-nVnkNQ4ywM0RVk0mU45yENvzhkiJU-nDPXjKVwJTPfeu-hmUfGmBj5retgJ9OGWwGMGQIPy44QcfERSE2kYGtFPM0-sTPqKYtGoqKfrsvA6JfnJaQASxV0df290" alt=""><figcaption></figcaption></figure>
5. From the options that appear, click on **Remove from hierarchy**.\\

   <figure><img src="https://3732932512-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F9giVyCrmTxAs33YrSRbJ%2Fuploads%2FUw7VjAqUVA2GGc7Nsovq%2Fimage.png?alt=media&#x26;token=a6cc6aec-addd-4ffd-9bb1-b5aae51b1b52" alt=""><figcaption></figcaption></figure>
6. A message window will appear confirming if you would like to remove the Geo-Object Type (group) from the selected hierarchy, click the **Submit** button.\\

   <figure><img src="https://lh5.googleusercontent.com/SQj8brhyM1A6VP4GTooGg7p9t7i6FtxrNK8ST7BHh1MsDZnpj9hKh01IZAwIZeOl94dnMU9ZNtjEPwJfc_rYjdaPi29OhSXDw01hLprT1g_O3wVn25nXzLtj18XVogFMPSRSOKtAhtzyftfAmnRp1_0gE89g24j0XcfLk5bMFDAcJtj9YXgivjL_" alt=""><figcaption></figcaption></figure>
